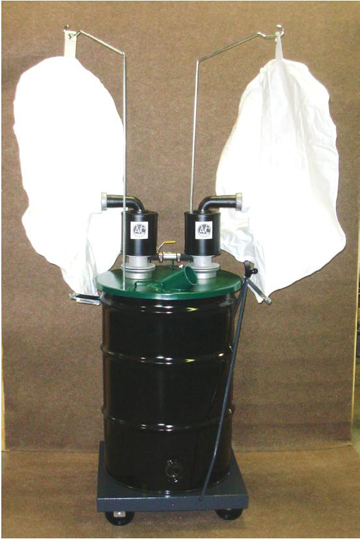

Our 55 Gallon dual & quad venture wet/dry pneumatic vacuum cleaners are the ideal units for you toughest vacuum applications. With no moving parts, you can run the 2J55 Gallon Vacuum machine continuously, and it's non-electric--powered by compressed air. External filtration means wet/dry simultaneous pick-up! No bags to remove! Utilize 1.5", 2" or 3" Hose & Tools for this specific air operated vacuum.
Features
- 27 Sq.Ft. of Filter area- 4 times the norm!
- Patented Venturi means incredible efficiency
- 55 Gallon Painted Steel Tank
- Easy to remove & clean filters
- Liquid shut-off modules standard
- Cast Iron "Jumbo Cover"
- Unit shipped with 3 different air jet sizes
- PSI Gauge standard on all units
- Complete assortment of 1.5", 2" or 3" Hose & Tools
SPECIFICATIONS
| Model | 2J55 |
|---|---|
| Tank Size | 55 gallon |
| Suction CFM | 180 CFM |
| Static Lift H20/ Hg | 180" H20/ 13" HG |
| Input PSI | 100PSI |
| Input CFM | 90 CFM |
| Wet / Dry Recover | Yes |
| Tank Materia | Painted Steel |
| Weight | 180lbs. |
Options
- 55 Gallon drum transfer lids for additional capacity
- Special drain valve arrangements
- Chips baskets available for separation of chips and coolants
- Tube & fitting available for hard pipe central systems
