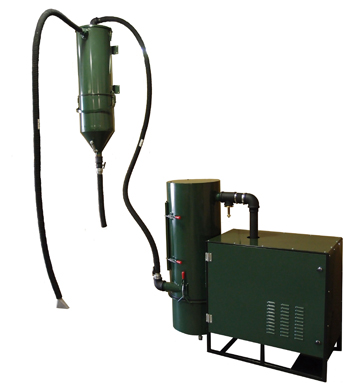

1 ½ - 7 ½ HP DMH units rated or continuous operation, day in and day out. When space or weight becomes a factor, separate the power unit from the primary separator. The connection between the power and separator is made via a flux recovery hose. The connecting hose can be as long as you want to permit welded piece to ride on traveling fixture. Ideal for large manipulators and positioners. Overhead separators come in a variety of sizes.
Features
- Positive displacement vacuum pump
- High Vacuum 7.5 to 9.0" Hg
- TEFC 1800 rpm high-efficiency motor
- Highest recovery rate on the market
- Filter efficiency of 99% @ 0.4 microns, standard
- Motor for 50 or 60 cycle
- Vacuum relief valve – prevents motor overload
- Choose from 4 different size overhead separators
- Totally enclosed – Panels on all sides
- Powder coat finish paint

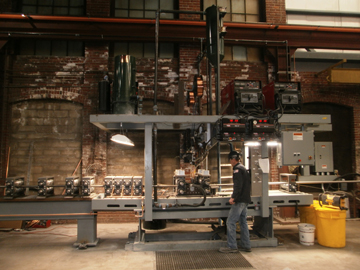

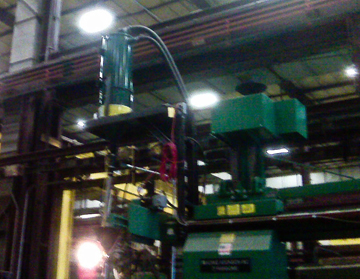

Photo Gallery
SPECIFICATIONS
| 615DMH | 620DMH | 630DMH | 650DMH | 675DMH | |
|---|---|---|---|---|---|
| System Horsepower | 1.5 HP | 2.0 HP | 3.0 HP | 5 HP | 7 ½ HP |
| Recovery rate with 1-1/2" x 25' Hose | 40 lbs per min | 45 lbs per min | 55 lbs per min | 60 lbs per min | 75 lbs per min |
| Vacuum | 7.0" HG (96" H2O) | 7.0 "HG (96" H2O) | 8.0" HG 110" H2O) | 8.0" HG (110" H2O) | 9.0 "HG (124" H2O) |
| Voltage/Phase | 230/460/3/60 | 230/460/3/60 | 230/460/3/60 | 230/460/3/60 | 230/460/3/60 |
| Dimensions L, W , H | 54" x 22" x 67" | 54" x 22" x 67" | 54" x 22" x 67" | 54" x 22" x 67" | 54" x 22" x 69" |
| Hopper Capacity | 150 lbs | 150 lbs | 150 lbs | 150 lbs | 150 lbs |
| Noise Level @ 3ft | 75 DBA | 77 DBA | 78 DBA | 78-80 DBA | 81-83 DBA |
| Weight | 620 lbs. | 625 lbs. | 720 lbs. | 730 lbs. | 750 lbs. |
Options
- Recovery from multiple welding heads
- Complete line of pick-up tools
- Flux band heaters available
- Specially fabricated overhead separators
