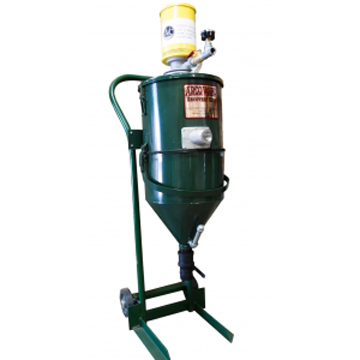

These high-performance, yet compact units are ideal for portable flux recovery. The air powered unit can run continuously and creates high vacuum levels. The electric unit runs off standard 115V power and is rated for intermittent use.
Features
- Slag Screens
- 150 LB Hopper capacity
- 2" Cast Manual Dump Valve
- Heavy Duty Hand Truck & Wheels
- Oversized Heavy Duty Cloth Filter
- Quiet Operation
- Choose electric or air operated
- Powder Coat Finish
- Stationary Units Available
SPECIFICATIONS
| Model | P-85-P |
|---|---|
| System Horsepower | Air |
| Recovery rate with 1-1/2" x 10' Hose | 45 lbs per min |
| Performance | 100" Waterlift & 110 CFM |
| Voltage/Phase | 90PSI @ 40CFM |
| Dimensions L, W , H | 57" H x 20" W |
| Hopper Capacity | 150 lbs |
| Inlet Size | 1.5" |
| Weight | 95 lbs. |
