The centrifugal exhauster line of vacuums is the heart and soul of our product line. Centrifugal exhauster vacuum systems from American Vacuum are built with a cast iron housing and cast aluminum impellers and outboard bearings for durability. The frame is completely enclosed with panels on all sides of this portable central vacuum system. An over-sized filter access door with an external filter shaker handle makes collection and disposal of materials simple and efficient. The durable materials and manufacturing of centrifugal exhaust systems will provide you with a lifetime vacuum producer. Neat and compact design allows for easy maneuverability. These systems specifically have an incredibly quiet operation and rugged construction. American Vacuum has installed thousands of these systems worldwide.
Features
- Slow speed brushless motor means no armature or bearing problems
- Guaranteed 24-Hour per-day operation
- 5 Cu.Ft. Dust Bucket
- 10 & 15HP TEFC High efficiency motors - standard
- Fully enclosed with steel panels, all moving parts are safely enclosed
- External bag shaker handle
- Oversized filter baghouse
- Cast Iron Housing & Cast Steel Impellers
- All units runs around 80 DBA
- Powder Coat finish
- 10” Wheels and 5” Swivel Casters – Standard
- All units come complete with Magnetic motor starters

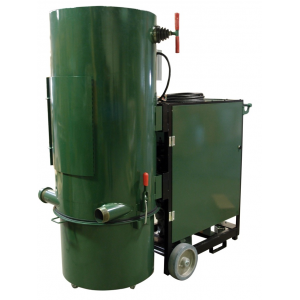

Photo Gallery
SPECIFICATIONS
| MODEL | CAPACITY | CFM | WATERLIFT | POWER | NOISE LEVEL | DIMENSION L,W,H | WEIGHT |
|---|---|---|---|---|---|---|---|
| PB-10-P | 5 Cu.Ft. | 350 | 7.0” HG | 230-460/3 | 77 DBA | 65” x 30” x 63” | 1410 LBS |
| PB-15-P | 5 Cu.Ft. | 450 | 7.3” HG | 230-460/3 | 79 DBA | 65” x 30” x 63” | 1560LBS |
OPTIONS
- HEPA Filtration available
- Explosion-Proof Motors & NEMA 7/9 Starters
- Pneumatic wheels and casters
- Central vacuum system tube & fittings
- Special fine particulate filters
- Complete assortment of 1-1/2", 2", & 3" Hose & Cleaning Tools
