The ARCO 1000 was specifically designed for fast, efficient as well as dependable performance in a compact size.
The powerful yet quiet vacuum increases your productivity when intermittent duty vacuums fail.
This continuous-duty vacuum system has a high-efficiency motor with a heavy-duty cloth filter.
The Arco 1000-S series is made with a cast aluminum blower and impeller and has a guaranteed 24 hour per day operation.
View the continuous duty vacuum product bulletin for complete details. Our industrial vacuums can collect a variety of materials. Click here to view a full list of the material types that we can move.
Features
- Slow speed brushless motor means no armature or bearing problems
- Guaranteed 24-Hour per-day operation
- 1HP, 3HP & 5HP TEFC General purpose motors
- Heavy duty cloth filter
- Cast aluminum Housing & Impeller
- Quite operation. Units runs under 80DBA
- Motors for 50 or 60 Cycle
- All units come standard with NEMA motor starters
- Portable units available

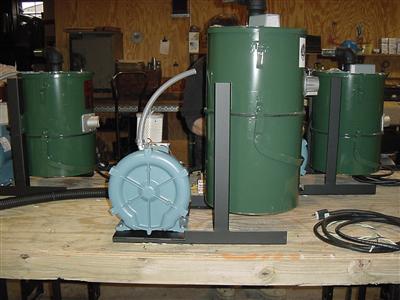

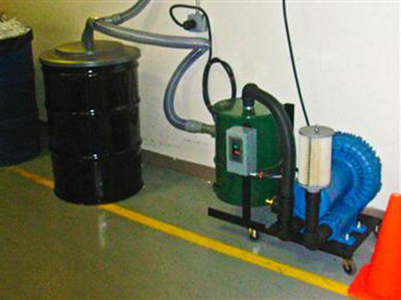

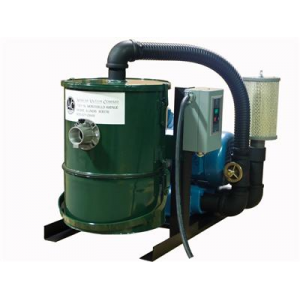

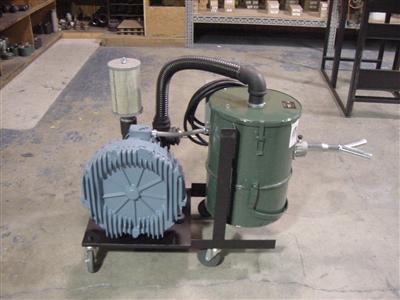

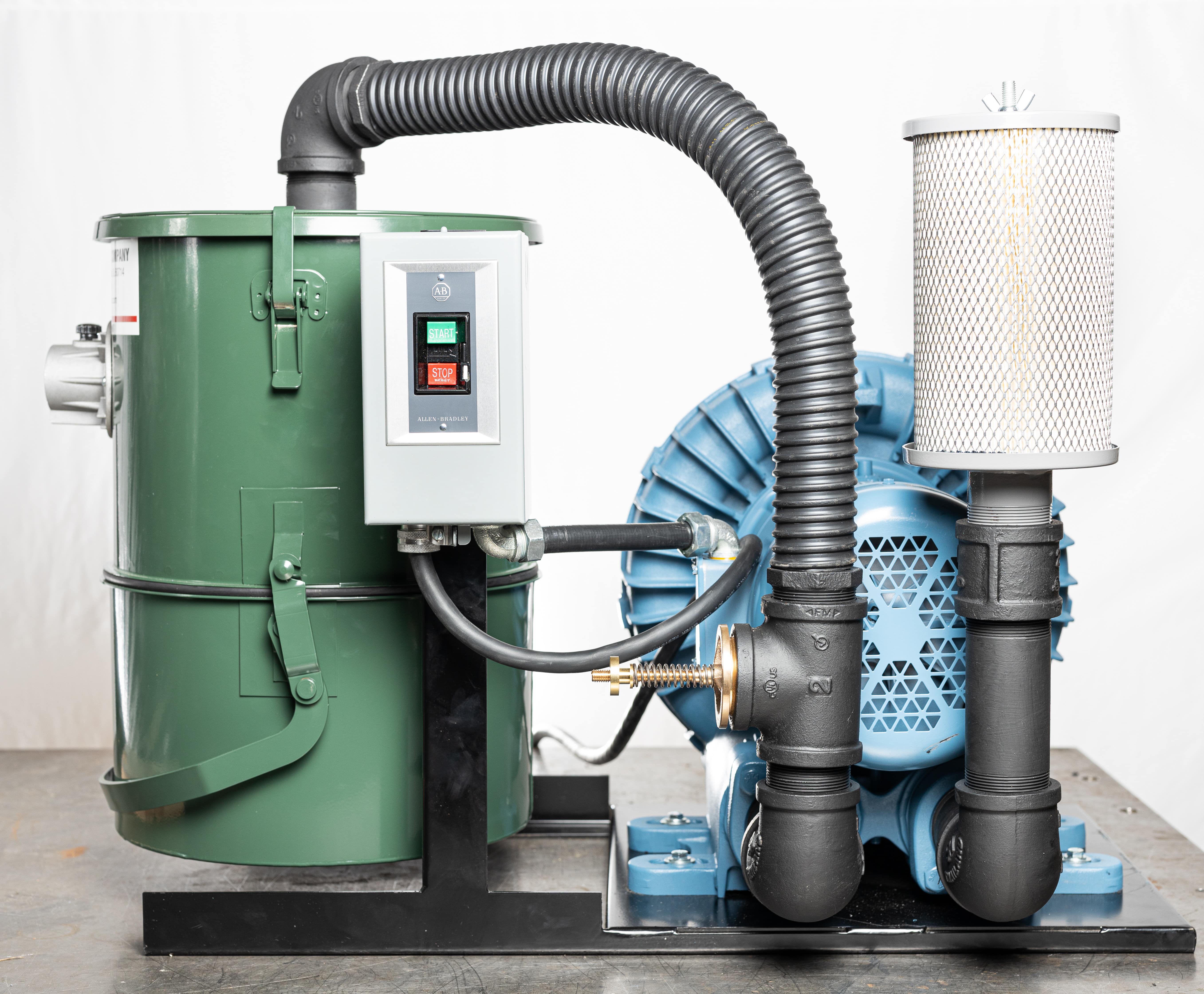

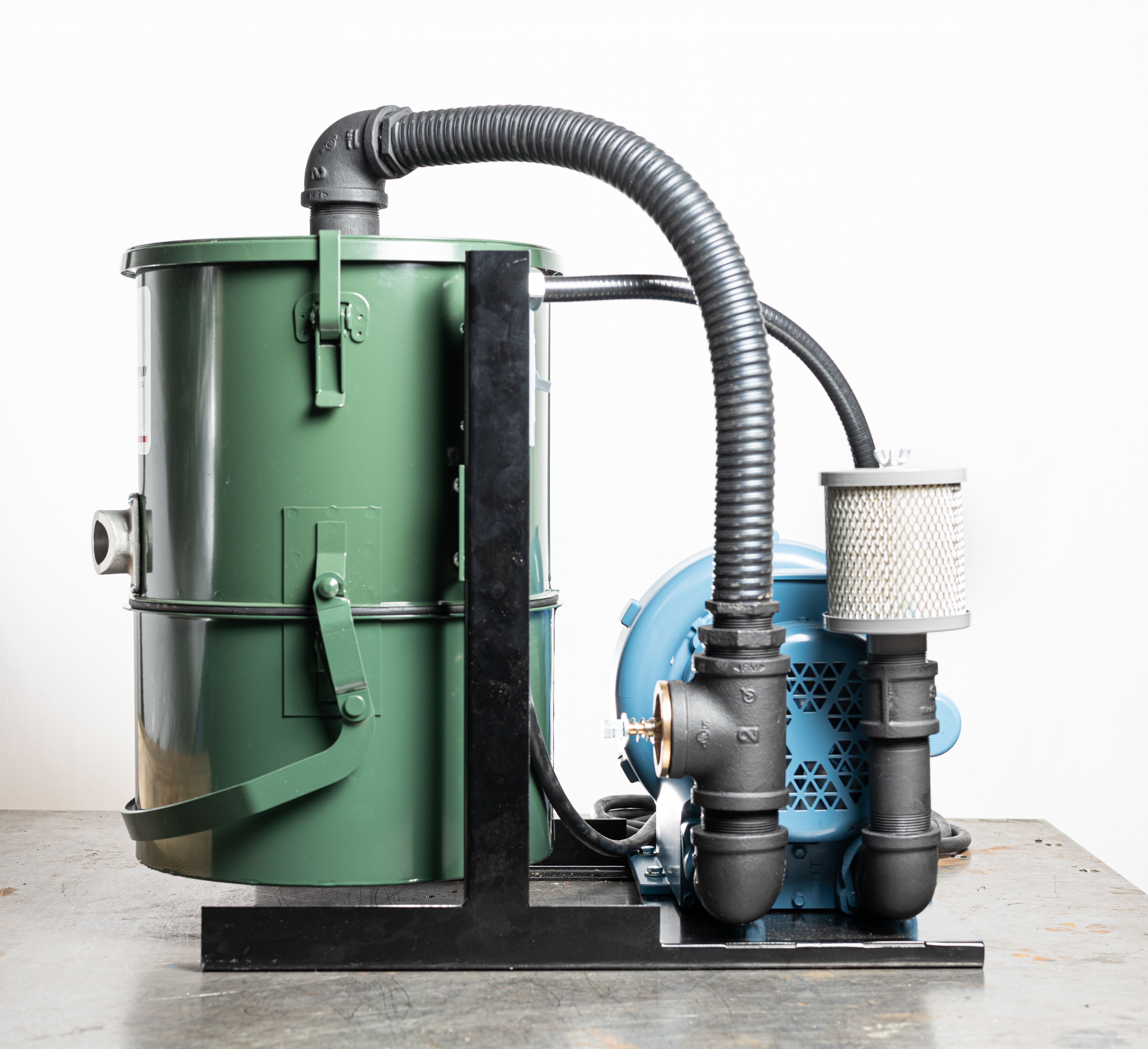

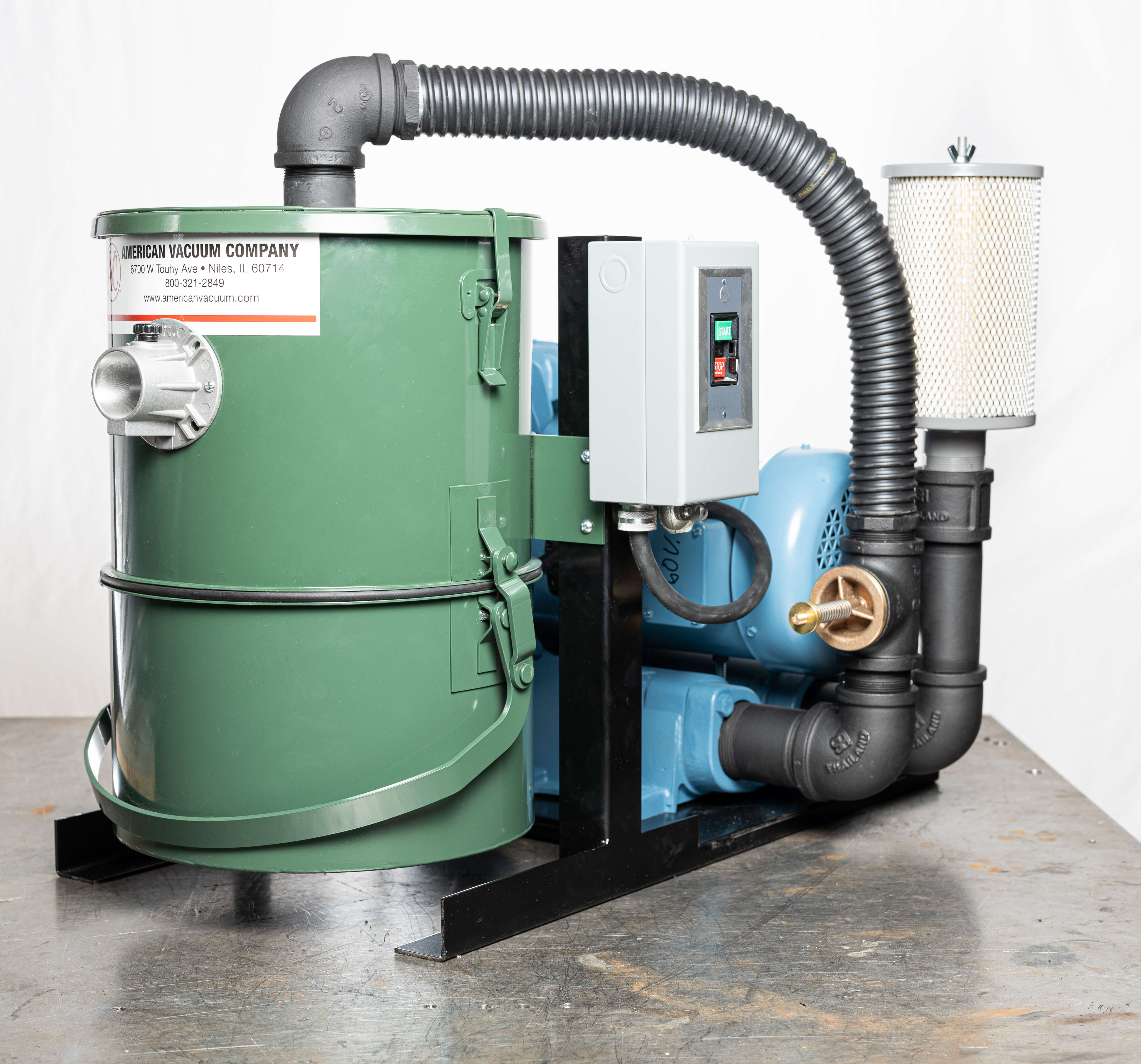

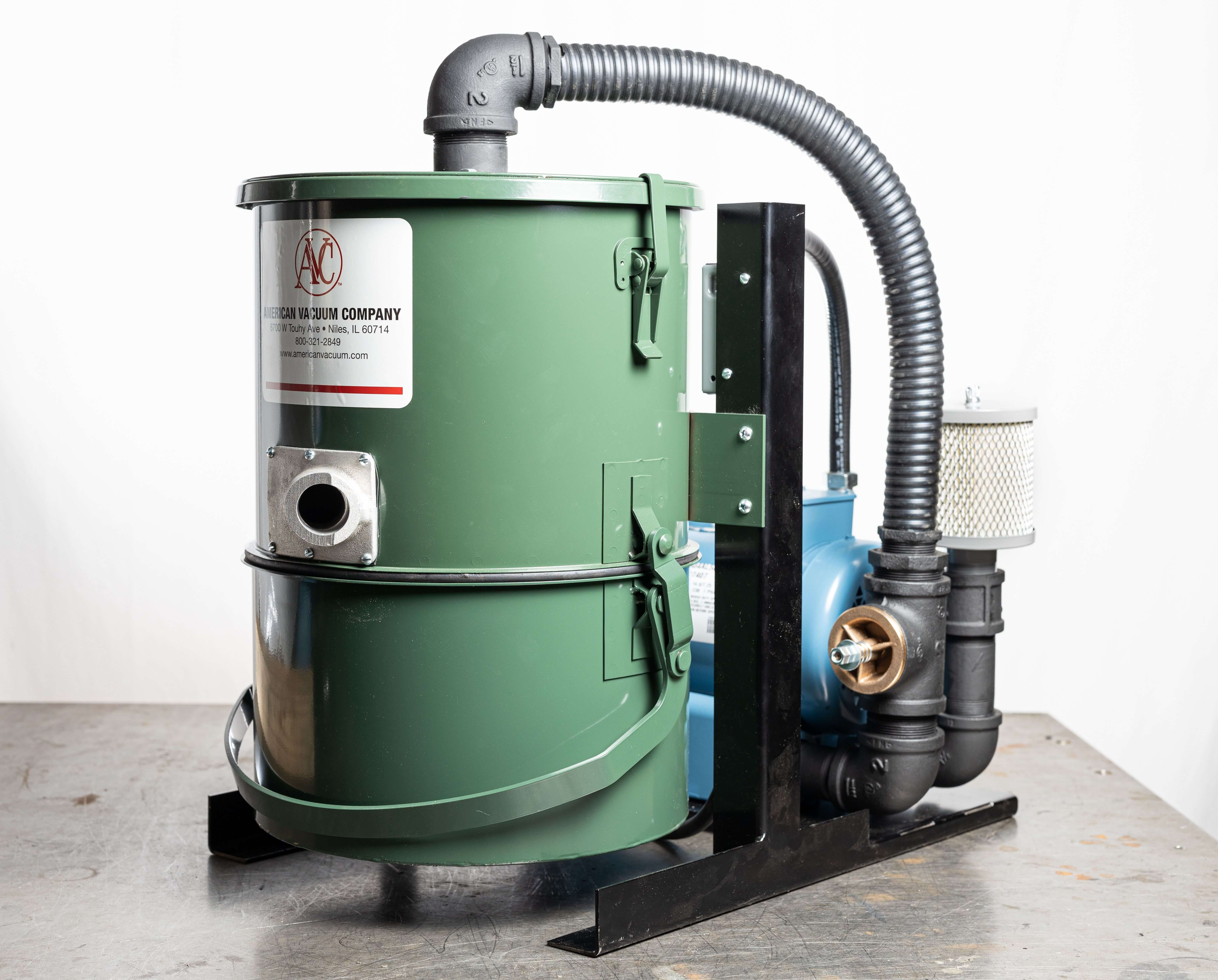

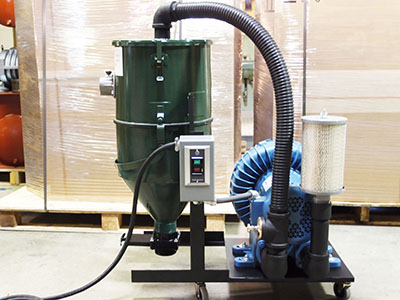

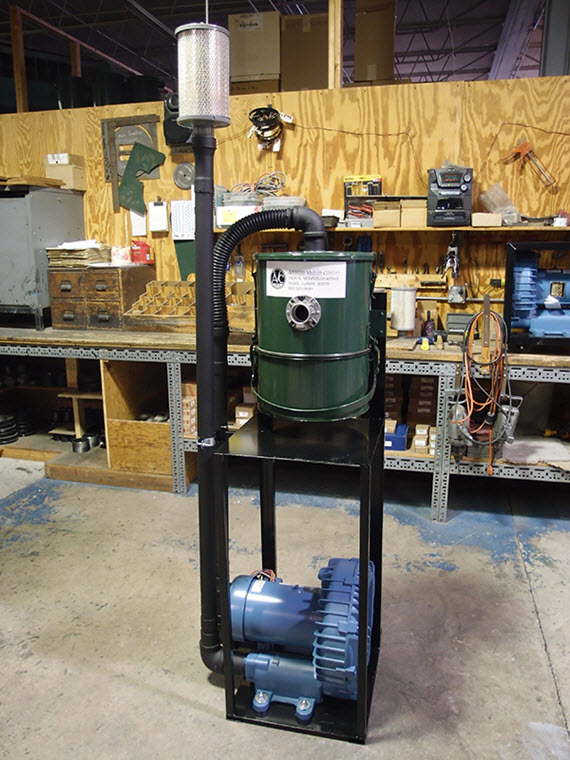

Photo Gallery
.jpg)
-min.jpg)
SPECIFICATIONS
| MODEL | CAPACITY | CFM | WATERLIFT | POWER | NOISE LEVEL | DIMENSION L,W,H | WEIGHT |
|---|---|---|---|---|---|---|---|
| 1000-S-1HP | 4 Gallon | 98 | 50" S.P. | 115/1 | 78 DBA | 24" x 18" x 28" | 145 |
| 1000-S-3HP | 4 Gallon | 150 | 80" S.P. | 230-460/3 | 80 DBA | 32" x 18" x 28" | 185 |
| 1000-S-5HP | 4 Gallon | 225 | 90" S.P. | 230-460/3 | 80 DBA | 32" x 18" x 28" | 165 |
OPTIONS
- HEPA Filtration available
- Explosion-Proof Motors & NEMA 7/9 Starters
- Separators for wet recovery & larger capacity
- Complete assortment of 1-1/2" & 2" Hose & Cleaning Tools
