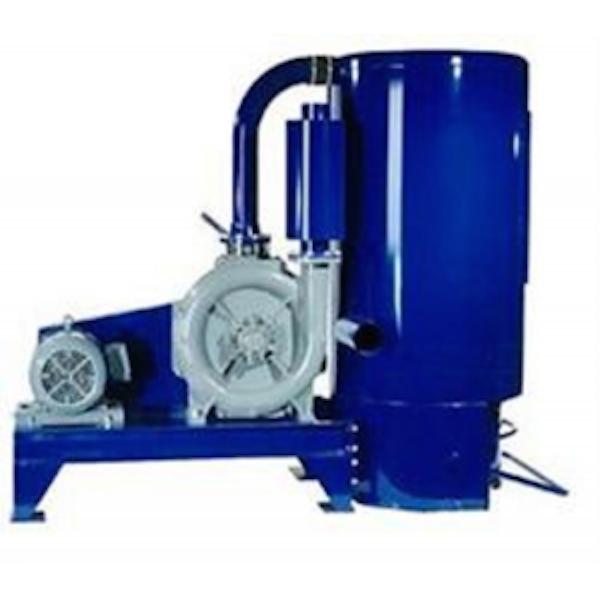

Our DV series stationary vacuums are our largest platform designed unit Offering 20, 25 & 30HP Models. CFM ranges from 900 to 1200. Systems to support up to 14 operators at the same time. We equip these units with the same reliable cast iron style centrifugal vacuum producer. The ideal multiple operator central vacuum in a compact platform design
Features
- Dependable cast iron vacuum producer
- Guaranteed 24-Hour per-day operation
- 6.0 Cu.Ft. Dust Bucket
- TEFC High-efficiency motors - standard
- 127 Sq. Ft. Filter baghouse
- Effective external filter shaker handle
- First stage cyclonic internal separation
- All Units equipped with surge prevention device
- All units runs under 85 DBA

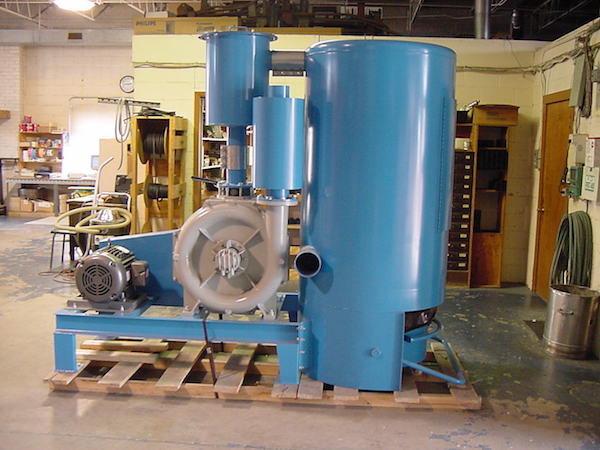

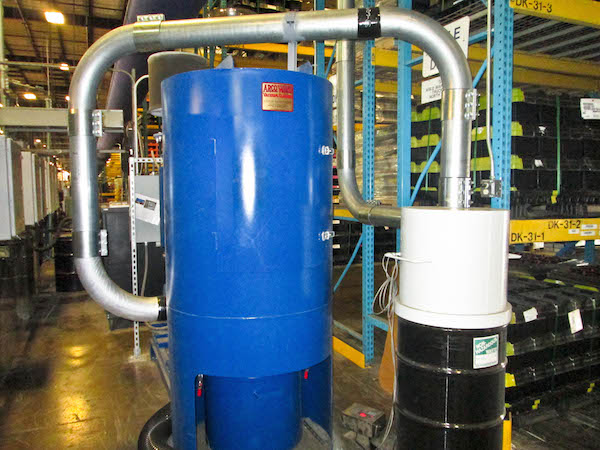

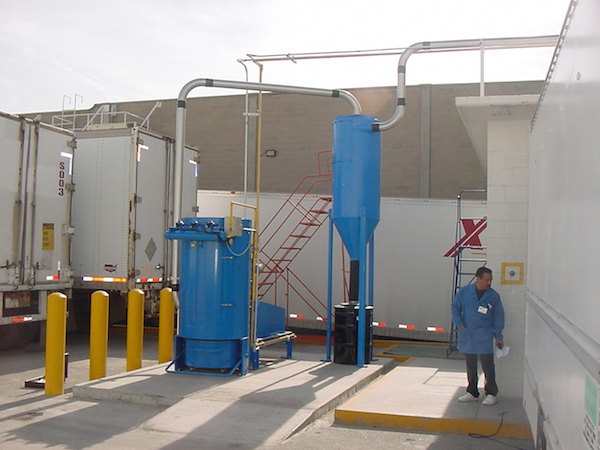

Photo Gallery
SPECIFICATIONS
| MODEL | CAPACITY | CFM | WATERLIFT | POWER | NOISE LEVEL | DIMENSION L,W,H | WEIGHT |
|---|---|---|---|---|---|---|---|
| DV-2000 | 6 Cu. Ft. | 740 | 6.65" HG | 230-460/3 | 83 DBA | 98" x 35" x 82" | 1250 LBS |
| DV-2500 | 6 Cu.Ft. | 960 | 6.35" HG | 230-460/3 | 84 DBA | 98" x 35" x 82" | 1325 LBS |
| DV-3000 | 6 Cu. Ft. | 1200 | 5.85" HG | 230-460/3 | 85 DBA | 98" x 35" x 82" | 1400 LBS |
OPTIONS
- HEPA Filtration available
- Explosion-Proof Motors & NEMA 7/9 Starters
- Positive Displacement vacuum pumps " Up to 14" HG Vacuum Power
- Central vacuum system tube & fittings
- Special fine particulate filters
- Complete assortment of 1-1/2" & 2" Hose & Cleaning Tools
