The PB Series stationary vacuum is a continuous-duty vacuum ideal for a 2-3 operator central vacuum system.
These units come with a cast centrifugal or regenerative blower configuration for quiet operation. Filter efficiency of 99.9% is standard with an over-sized filter access door for easy operation.
Features
- A slow-speed brushless motor means no armature or bearing problems
- Guaranteed 24-hour per-day operation
- 5 Cu.Ft. Dust Bucket
- 10 & 15HP TEFC High-efficiency motors - standard
- External bag shaker handle
- Fully enclosed with steel panels, all moving parts are safely enclosed
- Oversized filter baghouse
- Centrifugal blowers have cast iron housing & cast steel Impellers
- Regenerative blowers have aluminum housing & impellers
- All units run around 80 DBA
- Powder Coat finish
- Special high-volume separators for your toughest jobs
- Portable systems available
SPECIFICATIONS
| MODEL NUMBER | PUMP TYPE | CAPACITY | CFM | VACUUM LEVEL | POWER | NOISE LEVEL | DIMENSION L,W,H | WEIGHT (lbs) |
|---|---|---|---|---|---|---|---|---|
| PB-10-S | Cast Centrifual | 5 Cu.Ft. | 350 | 7.0" HG | 230/460/3/60 | 77 DBA | 61" x 29" x 63" | 1360 LBS |
| PB-15-S | Cast Centrifual | 5 Cu.Ft. | 450 | 7.3" HG | 230/460/3/60 | 79 DBA | 61" x 29" x 63" | 1500 LBS |
| PB-10-SR | Regenerative | 5 Cu. Ft | 350 | 5" HG | 230/460/3/60 | 80 DBA | 61" X 29" X 63" | 900 LBS |
| PB-15-SR | Regenerative | 5 Cu. Ft | 420 | 5" HG | 230/460/3/60 | 80 DBA | 61" X 29" X 63" | 920 LBS |
OPTIONS
- HEPA Filtration available
- Explosion-Proof Motors & NEMA 7/9 Starters
- Replace flat dust bucket with a hopper style bucket
- Central vacuum system tube & fittings
- Special fine particulate filters
- Complete assortment of 1-1/2", 2", 2-1/2" & 3" Hose & Cleaning Tools

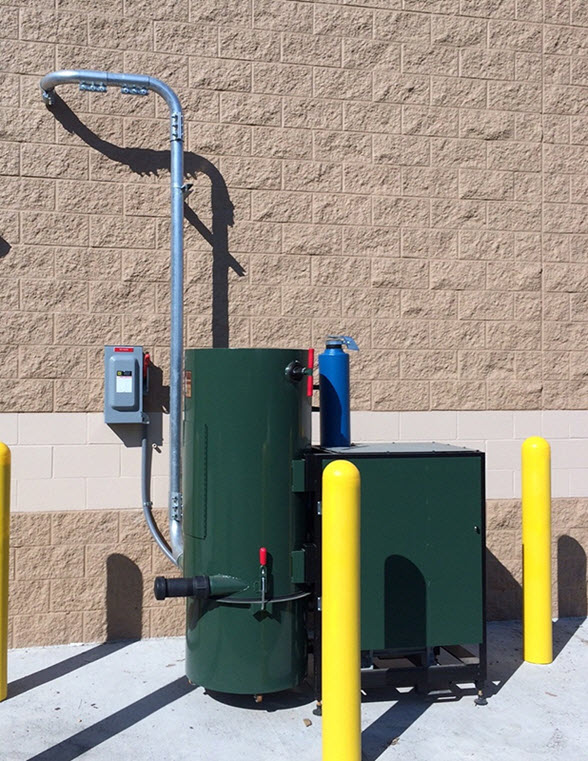

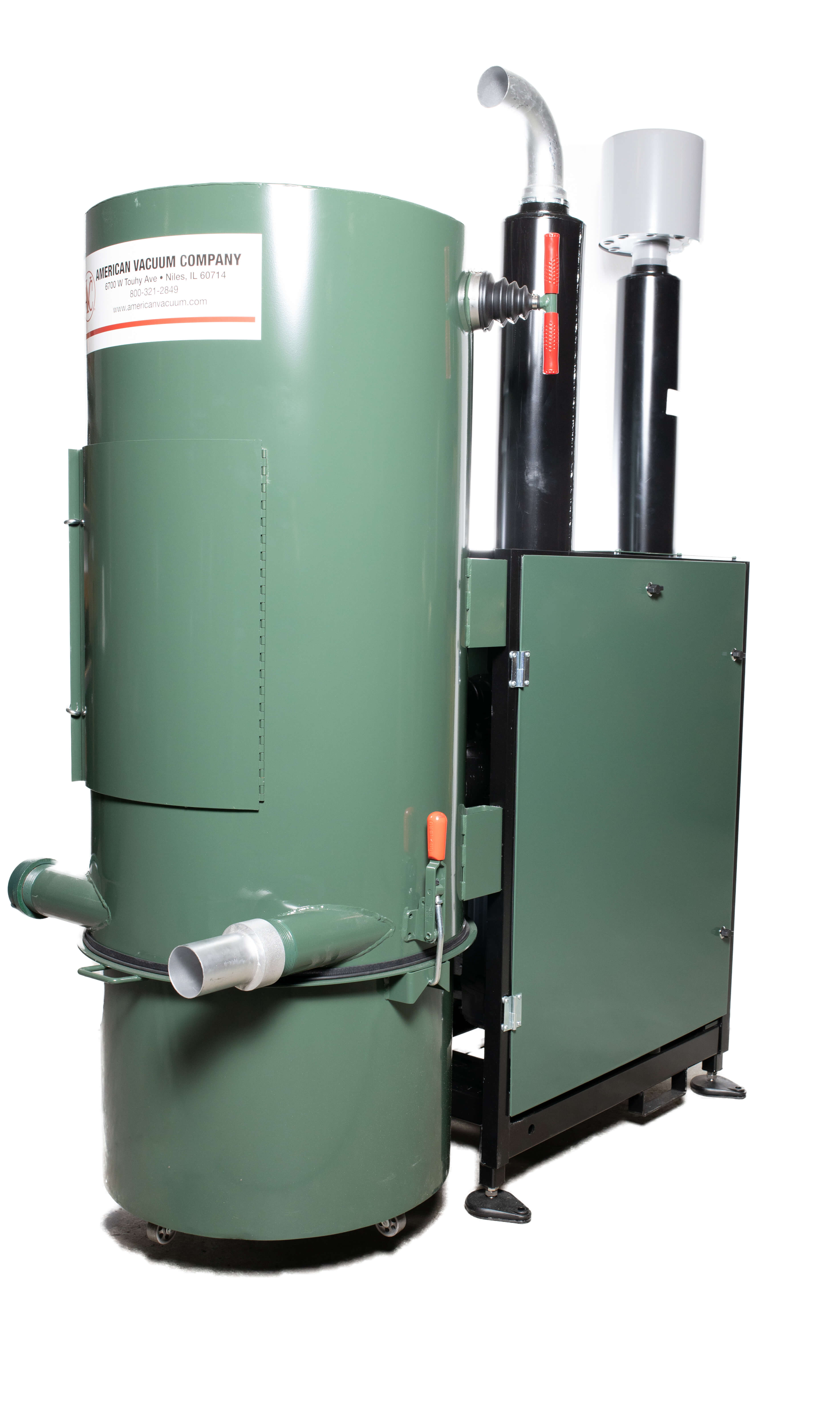

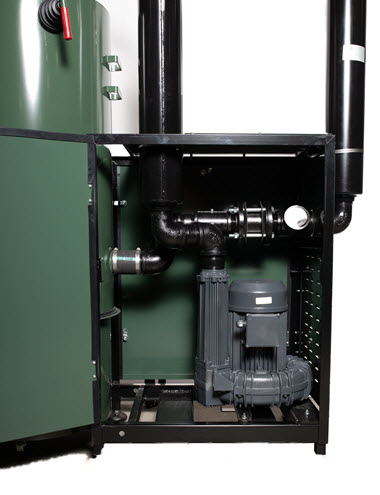

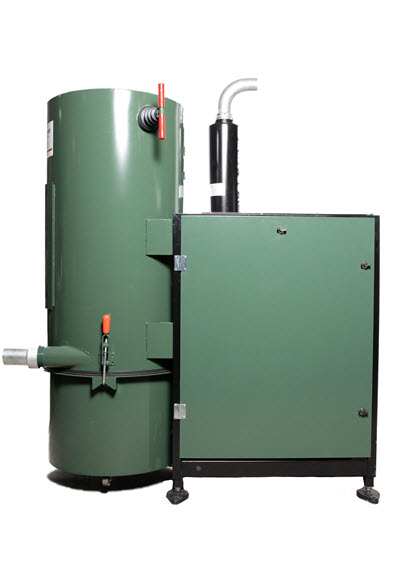

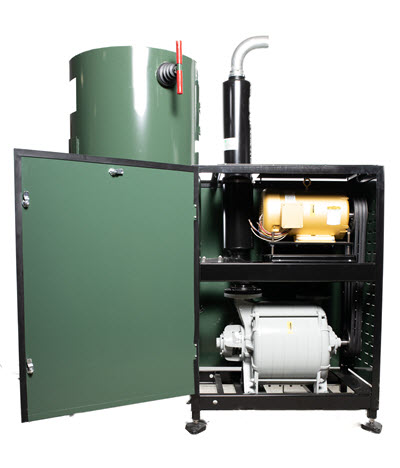

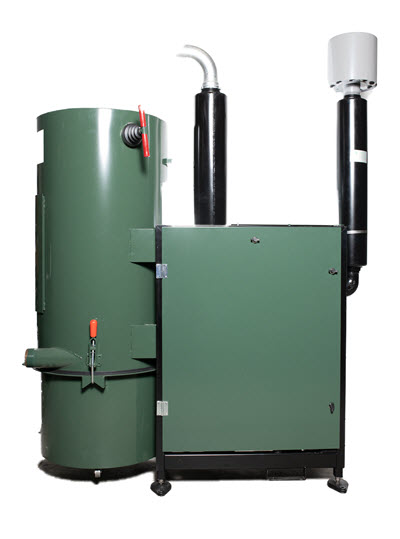

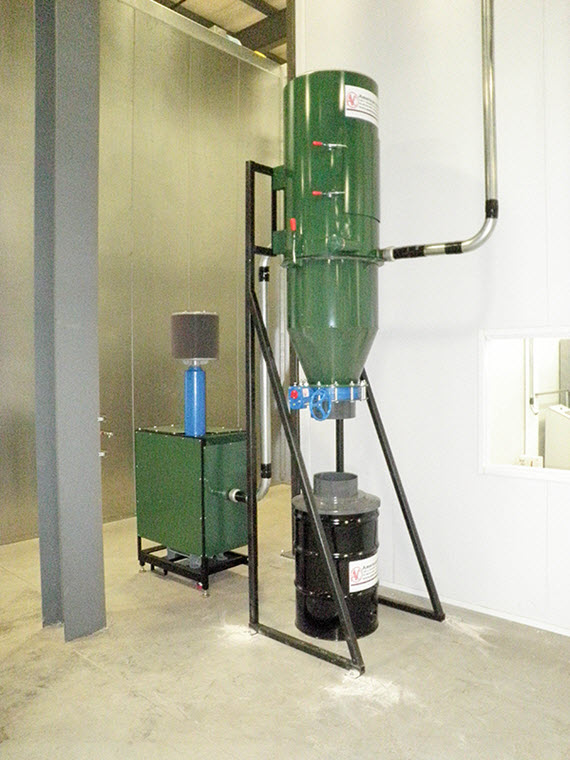

Photo Gallery
